2010-01-31

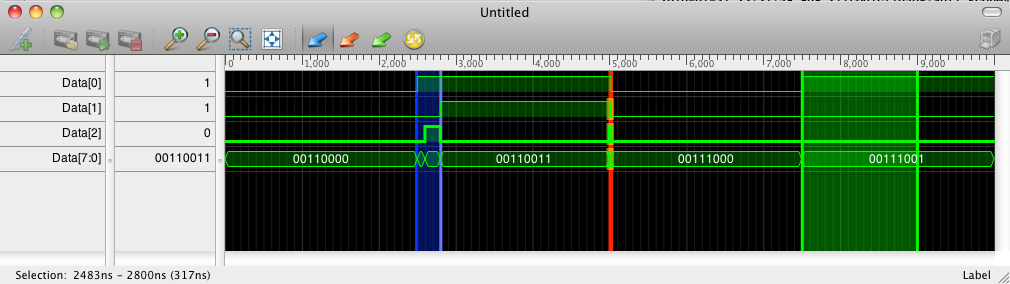

This is the first screenshot of the software. It's a MacOS application, written as an MDI-style application.

The icons along the top are (from left to right):

• Add new signal trace *
• Open connection to XilLogic device *
• Start recording from XilLogic device *
• Abort recording *
• Zoom in
• Zoom out
• Zoom to selected marked area
• Zoom to fit window
• Use blue marker
• Use red marker
• Use green marker
• Swap start and end
• Print (far right) *
